※ 부품명에 마우스를 올리면 각 부품의 상세이미지를 볼 수 있습니다.
CYLINDER COVER TOOLS(MS901)
- LIFTING TOOL(142)
- HANDLE-SUNDRY TYPES(083)
- PIN WRENCH-STARTING V/V(105)
- GRIND.TOOL-EXH.VALVE SEAT(046)
- MILL+GRIND.WH.FUEL VALVE(058)
- MILL+GRIND.WHEEL.ST.VALVE(060)
- GRINDING RING STARTING V/V HOUSE(095)
- DISMANTLING LEVER FOR FUEL VALVE(071)

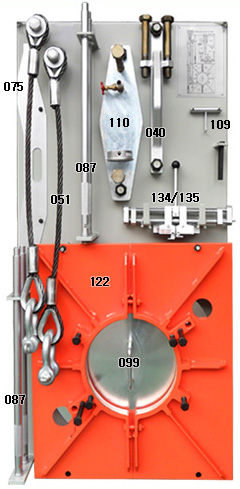

PISTON AND PISTON ROD PANEL(MS902)
- TEMPLATE-PISTON TOP(TIER2)(075)
- LIFTING TOOL FOR CYL.LINER(051)
- DISTANCE PIECE-STUF BOX(087)
- PRESSURE TEST TOOL PISTON(110)
- LIFT.F.PISTON ROD FOOT(040)
- MOUNT.TOOL,STUFF.B.SPRING(109)
- PISTON RING EXPANDER(134/135)
- WORKTABLE-STUFFING BOX(122)
- COVER FOR STUFF.BOX HOLE(099)

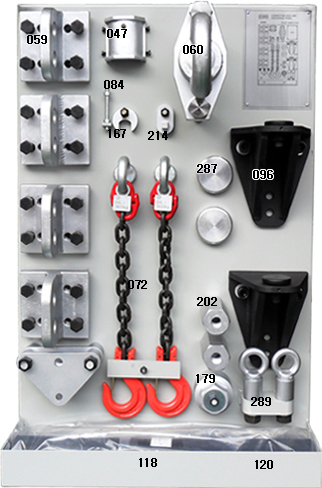

CONNECTING ROD AND CROSSHEAD PANEL(MS904)
- LIFT.ATTACHMENT-CONN.ROD(059)
- WIRE GUIDE(047)
- RET.TOOL FOR TELESCOPE PIPE(084)
- CROWFOOT WRENCH HEAD(167)
- TORQUE WRENCH OFFSET TOOL(214)
- LIFTING TOOL-CROSSHEAD(060)
- PROTECTIVE SCREW(287)
- BRACKET SUPPORT OF CROSSHEAD(096)
- EXTENSION(202)
- BRACKET COMPLETE(263)
- SOCKET SPANNERS(SW75)(179)
- LIFTING ATTACHMENT(289)
- RUBBER COVER CROSSHEAD(118)
- RUBBER COVER CROSSHEAD(120)

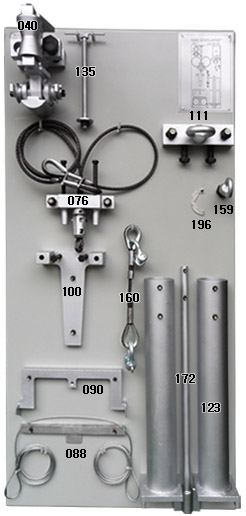

CRANKSHAFT, THRUSTSHAFT,
AND MAIN BEARING PANEL(MS905)
- LIFT.ATTACHMENT-CONN.ROD(040)
- LIFT.TOOL FOR RELIEF VALVE(135)
- LIFT. TOOL FOR MAIN BRG. CAP(076)
- LIFTING ATTACHMENT(111)
- TIGHTENING TEMPL.A.V.D(196)
- EYE BOLT(159)
- TOOL FOR - TURN. OUT SEGMENT(100)
- WIRE COMPLETE(160)
- MOUNT. TOOL THIN BRG SHELL(090)
- DISM. TOOL MAIN BEARING SHELL(088)
- RETAIN.TOOL FOR MAIN BRG.SHELL(123)
- MOUNT TOOL FOR THIN BEARING SHELL(172)

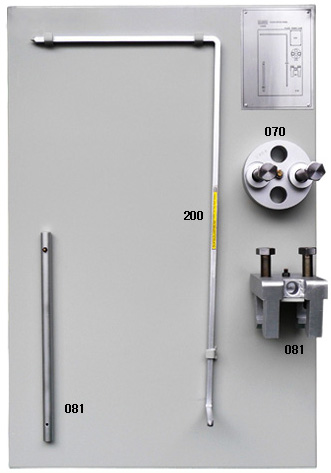

CHAIN DRIVE PANEL(MS906)
- PIN GAUGE FOR CRANK SHAFT(200)
- CHAIN ASSEMBLING TOOL(070)
- CHAIN DISASSEMBLING TOOL(081)

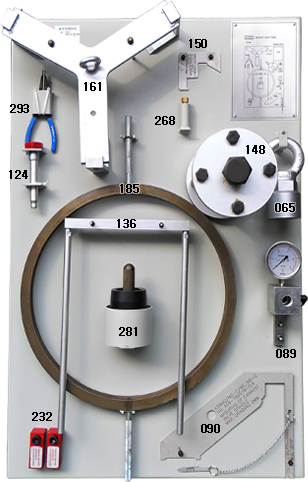

EXHAUST VALVE PANEL(MS908)
- PLIERS FOR RETAINING RING(293)
- TOOL, EMERG.OPEN EXH.VALVE(124)
- LIFTING TOOL EXH. V/V(161)
- GAUGE FOR EXHAUST V/V BOTTOM PIPCE(150)
- COUPLING(268)
- GRIND.RING EXH.V/V BOTTOM PIECE(185)
- BRIDGE GAUGE.EXH. VALVE(136)
- GRINDING TOOL-H.P.PIPE(112)
- CONE,FOR SEALING RING(281)
- TOOL FOR HYDRAULIC PISTON(148)
- LIFT.TOOL F.EXHAUST VALVE(065)
- PRESSURE GAUGE SUPPORT(089)
- GAUGE EXHAUST V/V SPINDLE(090)
- RETAINING TOOL(232)

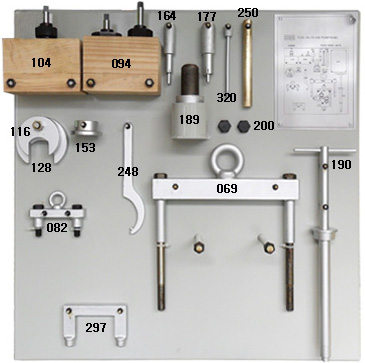

FUEL VALVE AND PUMP PANEL(MS909)
- MILL.TOOL-FUEL OIL PIPE(104)
- MILL+GRIND.WHEEL.ST.VALVE(094)
- GRIND.MANDREL-VALVE HEAD(164)
- GRIND MANDREL FOR THR. SPINDLE(177)
- LOCKING DEVICE(320)
- DRIFT-SPINDLE GUIDE(250)
- GRIND. MANDREL-HOLDER OUTSIDE(189)
- CROWFOOT WRENCH HEAD(116)
- CROWFOOT WRENCH HEAD(128)
- FLANGE-DISM.-NON RETURN(153)
- LIFT.TOOL F.HYDR.PLUNGER(082)
- HOOK WRENCH(95/100)(248)
- LIFT.TOOL FOR FUEL PUMP(069)
- GRIND. MANDREL HOLDER INSIDE(190)
- ASSEMBLING TOOLS(297)
